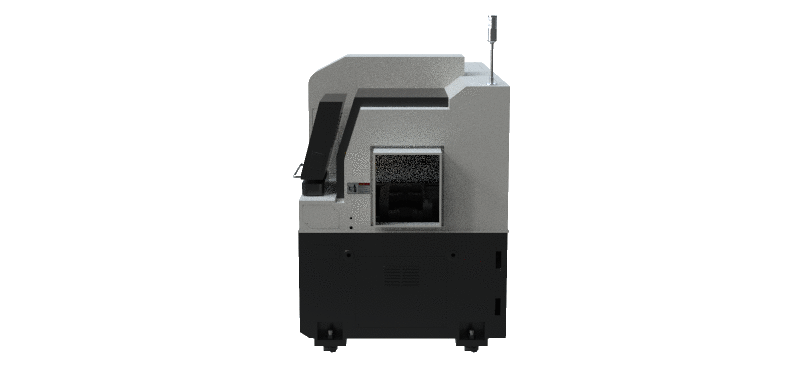

TCM 38h

User-Friendly Cover Design

  • No coolant leaks

  • Easy mainenance

  • Enlarged workspace

Structure of minimized thermal Deformation

  • Integral bed structure

  • High rigidity frame design

Cycle time reduction

  • Apply smart overlap

  • Apply smart rigid tapping

  • Apply Intelligence Chucking System

Tool layout


Key Specification

Max manufactuer diameter

Max stroke

Max main drilling

Max main tapping

Max cross drill

Max cross tapping

Max cross slotting

Max back end drilling(stationary)

Max back end drilling(rotate)

Max back end  tapping(stationary))

Max back end tapping(rotate)

Ø38mm

320(100)mm

Ø13

M10

Ø10

M10

1.5X4.0

Ø10

Ø10

M10

M10

38H
Specification

Model

NC

Max. Machining OD

Max. Machining Length

O.D

Front

Cross Drill

Back End Tool

Eccentric Tool

Main Spindle

Sub Spindle

Cross Drill

Back End Tool

Coolant Pump

Weight

Machine Size(L x W x H)

Electrical Power

Air Flow Rate

Fanuc Oi-TF PLUS

Ø38 mm

320 /100 mm

6 EA [□ 16]

10 EA (FRONT 5, BACK 5)

5 EA

6/8 EA(fix2/4, live4)

0EA

6,500 rpm (5.5/7.5 kW)

6,500rpm (2.2/5.5 kW)

6,000 rpm (2.2 kW)

6,000rpm (1 kW)

250 Liter

4500 kg

3130 x 1470 x 1785

15 KVA (Min 16 SQ)

120~150 Liter / Min

TCM 38h

Standard Accessories

Optional Accessories

  • Cross Live Tool Holder

  • Rotary Guide bush

  • Coolant Flow Sensor

  • RS-232C I/O Interface

  • Door Lock

  • Part Conveyor

  • Bar Feeder Interface

  • Automatic Shut-off Device

  • Indoor lighting(LED)

  • Signal Lamp

  • Cut Off Tool Breakage Detector(S/W)

  • Tools-life management system

  • Prevention Collision System

  • Manual Pulse Generator(MPG)

  • Stationary Guide Bush

  • Transformer

  • Rear Discharge Device

  • Pressure Coolant Pump

  • Bar Feeder

  • Chip Conveyor

  • Coolant Cooling System

  • Dust Collector

  • Side Cutter

  • Whirling Head

  • 3-Spindle Adjustable Angle Unit

  • 3-Spindle Unit

  • Polygon Unit

38H Machining Movie
