Technical Strength

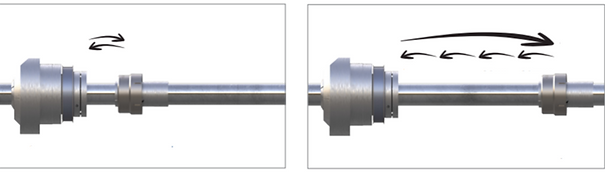

takes advantage of the ample 300 mmm stroke to reduce the number of bar re-chucks during long production runs. Instead of rechecking for each part the spindle feeds 280mm of material to make multiple parts in a single chucking operation and increments forward for each part. See how this can save even more off your cycle time.

50mm
50mm
50mm
50mm
50mm
280mm
50mm

Application Example

The intelligence chucking for the below workpiece reduces 1.7 sec and increases 15% of daily yield.

intelligence chucking.png

ex1. Example of Appling Intelligence Chucking

saves cycle time by moving the tool in a smooth arc. Instead of moving fully back, over and up for each tool change. The function calculates the smoothest and most efficient transition path from tool to tool saving time on every tool change. Savings that add up to a significant reduction of cycle time, which means more profits for you.

T0101 ;



M3 S3200 ;



G0 X27. Z0. ;



G99 G1 X25.5 F0.3 ;


T0101  M3 S3200 ; X27. Z0.



G99 G1 X25.5 F0.3 ;

* Before vs. After changing the programs


ex2) Cycle Time Reduction

나사가공 영문.png

Repetitive operations commonly used for settings consist of several customer functions so that users can use them more practically.



Screen captures of M42 Initial tool setting, manual tool calling function & crash prevention setting are the below


Fig 6) Screenshots of Custom Function

Variable Frequency Turning (VFT) uses a modified sine wave equation to move the cutting tool at varying intervals to allow for greater chip thinning and chip breakage. This allows for better heat dissipation, chip control, and less machine downtime for taking care of chip issues.
