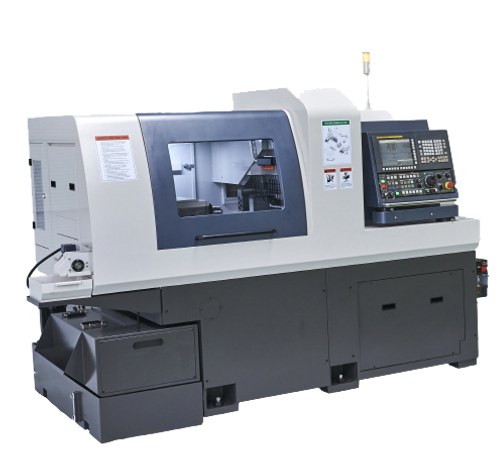

User-friendly cover design
  • No coolant leaks

  • Easy mainenance

  • Enlarged workspace

Structure of minimized thermal defomation
  • Integral bed structure

  • High rigidity frame design

  • Apply smart overlap

  • Apply smart rigid tapping

Cycle time reduction

TCM38S Machining movie

Model

NC

Max. Machining OD

Max. Machining Length

O.D

Front

Cross Drill

Back End Tool

Eccentric Tool

Main Spindle

Sub Spindle

Cross Drill

Back End Tool

Coolant Pump

Weight

Machine Size(L x W x H)

Electrical Power

Air Flow Rate

Fanuc Oi-TF

Ø32/38 mm

300 mm

6 EA [□ 16]

10 EA (FRONT 5, BACK 5)

4 EA

4 EA(Fix 2, Live 2)

3 EA(Fix 1, Live 2)

8000 rpm (5.5/7.7 kW)

8000rpm (1.5/2.2 kW)

5000 rpm (1 kW)

5000rpm (1 kW)

200 Liter (0.9 kW)

3500 kg

2700 x 1480 x 1800

15 KVA (Min 16 SQ)

120~150 Liter / Min

Standard Accessories

Optional Accessories

  • Cross Live Tool Holder

  • Rotary Guide bush

  • Coolant Flow Sensor

  • RS-232C I/O Interface

  • Door Lock

  • Part Conveyor

  • Bar Feeder Interface

  • Automatic Shut-off Device

  • Indoor lighting(LED)

  • Signal Lamp

  • Cut Off Tool Breakage Detector(S/W)

  • Tools-life management system

  • Prevention Collision System

  • Manual Pulse Generator(MPG)

  • Stationary Guide Bush

  • Transformer

  • Rear Discharge Device

  • Eccentric Tool

  • Pressure Coolant Pump

  • Bar Feeder

  • Chip Conveyor

  • Coolant Cooling System

  • Dust Collector

  • Side Cutter

  • Whirling Head

  • 3-Spindle Adjustable Angle Unit

  • 3-Spindle Unit

  • Polygon Unit

Specification

Tool layout

User-friendly cover design
  • No coolant leaks

  • Easy mainenance

  • Enlarged workspace

Structure of minimized thermal defomation
  • Integral bed structure

  • High rigidity frame design

Cycle time reduction
  • Apply smart overlap

  • Apply smart rigid tapping

Tool layout

TCM20S Machining movie

Specification

Model

NC

Max. Machining OD

Max. Machining Length

O.D

Front

Cross Drill

Back End Tool

Eccentric Tool

Main Spindle

Sub Spindle

Cross Drill

Back End Tool

Coolant Pump

Weight

Machine Size(L x W x H)

Electrical Power

Air Flow Rate

Fanuc Oi-TF

Ø20/26 mm

300 mm

6 EA [□ 16]

10 EA (FRONT 5, BACK 5)

4 EA

4 EA(Fix 2, Live 2)

3 EA(Fix 1, Live 2)

10000 rpm (2.2/3.7 kW)

8000rpm (1.5/2.2 kW)

5000 rpm (1 kW)

5000rpm (1 kW)

200 Liter (0.9 kW)

3500 kg

2700 x 1480 x 1800

15 KVA (Min 16 SQ)

120~150 Liter / Min

Standard Accessories

Optional Accessories

  • Cross Live Tool Holder

  • Rotary Guide bush

  • Coolant Flow Sensor

  • RS-232C I/O Interface

  • Door Lock

  • Part Conveyor

  • Bar Feeder Interface

  • Automatic Shut-off Device

  • Indoor lighting(LED)

  • Signal Lamp

  • Cut Off Tool Breakage Detector(S/W)

  • Tools-life management system

  • Prevention Collision System

  • Manual Pulse Generator(MPG)

  • Stationary Guide Bush

  • Transformer

  • Rear Discharge Device

  • Eccentric Tool

  • Pressure Coolant Pump

  • Bar Feeder

  • Chip Conveyor

  • Coolant Cooling System

  • Dust Collector

  • Side Cutter

  • Whirling Head

  • 3-Spindle Adjustable Angle Unit

  • 3-Spindle Unit

  • Polygon Unit
